Difference Between H-Beam, I-Beam, and U-Channel (Which One Should You Use?)
H-Beams, I-Beams, and U-Channels are some of the most widely used steel profiles in construction and fabrication. Even though they may look similar, each one performs differently depending on the load, design, and application.
This guide breaks down the differences in shape, strength, uses, and how to choose the right one.

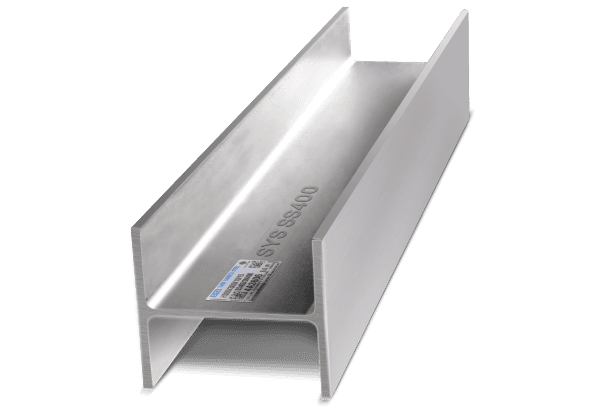

What Is an H-Beam?
An H-Beam, also called a wide flange beam, has a cross-section shaped like the letter H.
Key Features of H-Beam
Wide, thick flanges
Stronger load-bearing capacity
Can be used both horizontally and vertically
More weight per meter
Where H-Beams Are Used
Bridges
Skyscrapers
Heavy-duty building columns
Industrial structures
H-Beams are ideal when you need maximum strength and stability.

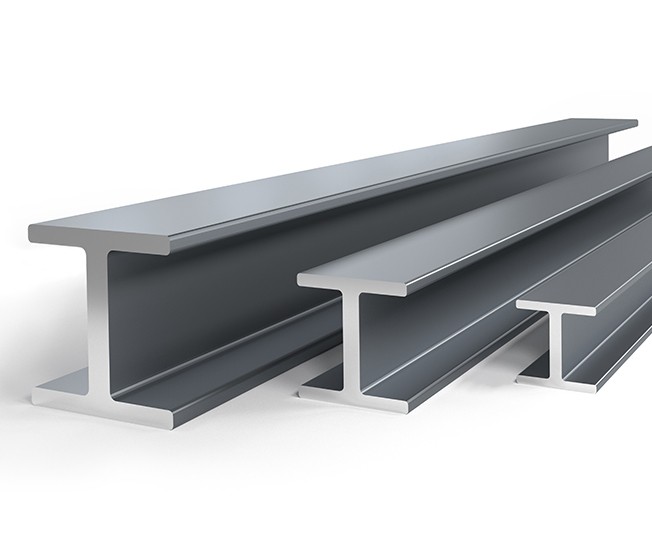

What Is an I-Beam?
An I-Beam, often called H-section or universal beam, looks like the letter I with narrower flanges and a thinner web.
Key Features of I-Beam
Narrower flanges
Lighter than H-Beams
Best for vertical loads
Popular in general construction
Where I-Beams Are Used
Residential buildings
Support frames
Roof trusses
Light to medium construction
I-Beams are perfect when you need good strength but lower weight.

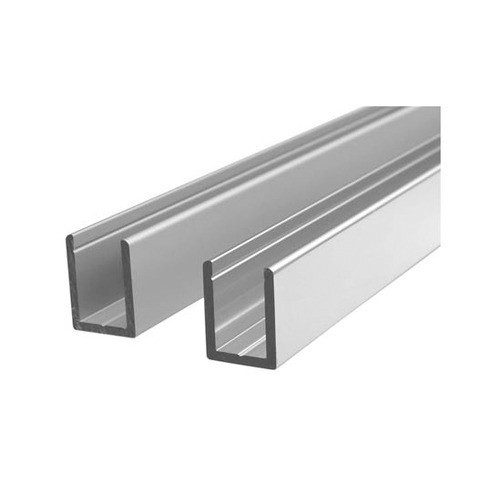

What Is a U-Channel?
A U-Channel or C-Channel has a cross-section shaped like the letter U or C.
Key Features of U-Channel
One opening side
Lighter than both H- and I-Beams
Easy to cut, weld, and fabricate
Less resistant to twisting
Where U-Channels Are Used
Vehicle frames
Racking systems
Door and window frames
Light structural support
U-Channels are the best for lighter loads and simpler fabrications.
H-Beam vs I-Beam vs U-Channel (Quick Comparison)
Feature | H-Beam | I-Beam | U-Channel |
|---|---|---|---|
Shape | “H” with wide flanges | “I” with narrow flanges | “U” or “C” shape |
Strength | Highest | Medium | Lowest |
Weight | Heaviest | Moderate | Lightest |
Load Type | Heavy vertical & horizontal | Mostly vertical | Light loads |
Stability | Very high | High | Moderate |
Cost | Most expensive | Medium | Cheapest |
Best For | Industrial & heavy construction | General building | Light fabrications |
Which One Should You Use?
Choosing the right profile depends on your project:
✅ Use an H-Beam if:
You need extreme strength
You’re constructing heavy buildings
Load is both vertical and horizontal
Long spans or columns are required
✅ Use an I-Beam if:
You need good strength at a lower cost
You’re building residential or commercial structures
Loads are mainly vertical
Weight reduction matters
✅ Use a U-Channel if:
Your project involves light fabrication
Budget is limited
The load is minimal
You need easy welding, cutting, and handling
To Round It Up
H-Beam = Maximum strength & heavy-duty use
I-Beam = Balanced strength & cost
U-Channel = Lightweight & economical
Your choice should be based on required strength, load direction, cost, and ease of fabrication. For heavy construction, go for H-Beam; for standard building, pick I-Beam; and for lighter jobs, U-Channel is your best option.
